H Track Single Circuit Left L Connector
Original price was: $17.80.$12.46Current price is: $12.46.
- We take quality seriously.
- Safe Payments, the Smart Choice
- Service that stands out, online and always timely.
- Reliable Payments for Reliable Shopping
120-Volt Track systems are modular and can be designed for multiple applications in nearly any interior environment. L-Connectors are used to join 2-pieces of track together with power continuity to form a 90° angle. L-connectors are power feedable when aligned beneath a junction box. L-connectors are offered in right and left versions – it is important to select the correct L-connector for track polarity. A great rule of thumb is to walk underneath where the track would be installed. If you have to make a left turn, that’s a Left L-connector, if you have to make a right turn, that’s a Right L-connector. H Track is compatible with WAC Lighting H-style track heads and Halo track systems. This is a 3-wire single circuit track system.
- L-connectors are offered in right and left versions: it is important to select the correct L-connector for track polarity, a great rule of thumb is to walk underneath where the track would be installed, if you have to make a left turn, that’s a left L-connector, if you have to make a right turn, that’s a right L-connector
- L-connectors are used to join 2-pieces of track together with power continuity to form a 90° angle, L-connectors are power feedable when aligned beneath a junction box
- For use with H track systems
- Single circuit 120-Volt track, power per circuit: 120-Volt, 1920-Watt maximum per circuit, operating current: rated 20 Amp maximum
- Compatible with H track systems by WAC Lighting, also compatible with H systems from other leading lighting manufacturers
- Standards: UL and cUL Listed for dry locations

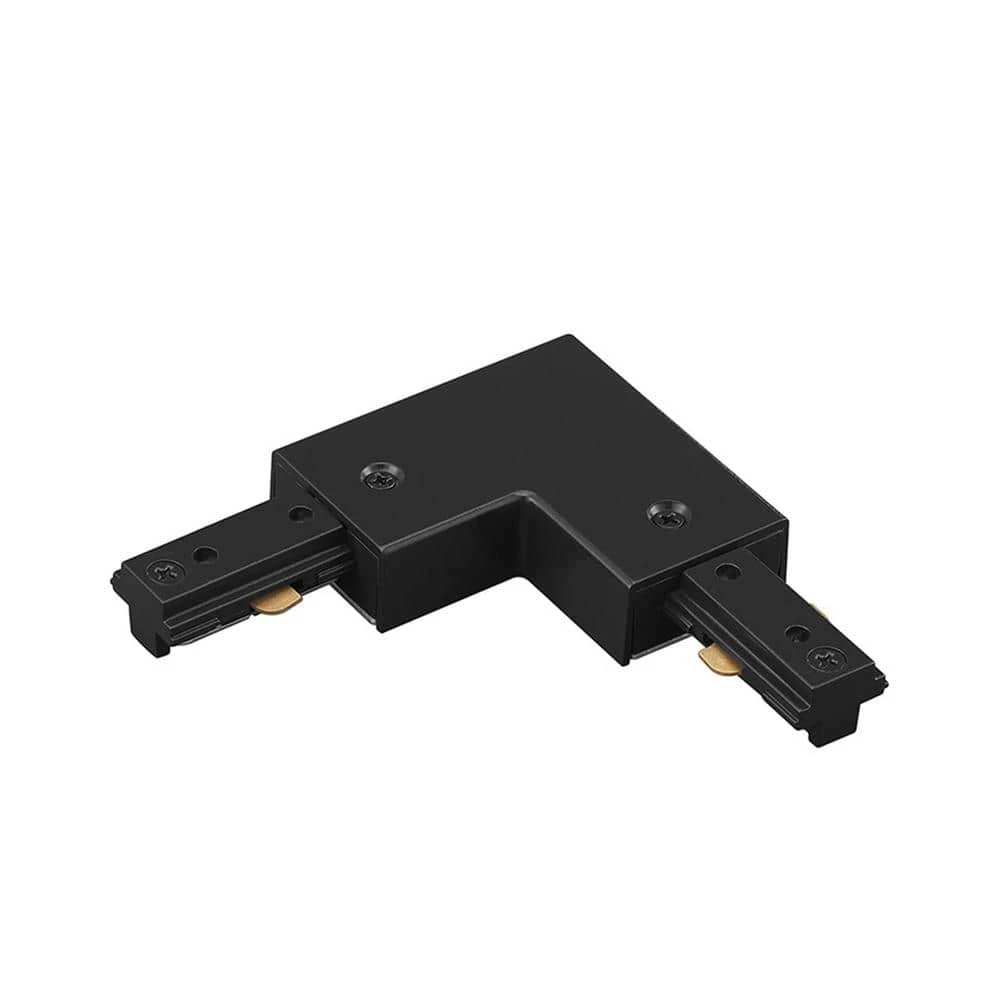

- H track left L connector in black
- u003cvalue src=
- u003cvalue src=
- u003cvalue src=
- u003cvalue src=
- u003ca href=
| Circuit Type | Single Circuit |
|---|---|
| Compatible Bulb Type | CFL,Fluorescent,Halogen,Incandescent,LED,Xenon |
| Fixture Color Family | Black |
| Fixture Color/Finish | Black |
| Hardware Included | Yes |
| Light Bulb Base Code | LED |
| Power Options | Hardwired |
| Product Weight (lb.) | 0.28 lb |
| Returnable | 90-Day |
| Track Lighting Type | Fixed Track |
| Certifications and Listings | ADA Compliant,ANSI Certified,ANSI Compliant,CSA Listed,Certified Listed,ETL Classified,ETL Listed,ISO Certified,OSHA Compliant,UL Certified,UL Classified,UL Listed,UL Recognized,cETLus,cUL Listed,cULus Listed,cULus Recognized |
| Manufacturer Warranty | 5 Years Functional, 2 Years Finish |
| Product Depth (in.) | 4.92 in |
| Product Height (in.) | 1.02 in |
| Product Width (in.) | 4.92 in |
